ADJUSTABLE
HANDLING
With
adjustable sponsons and Yamaha's
exclusive Trim System, you can
easily adjust the ride of your
WaveRunner for improved handling and
quicker planing. |
|
|
|
|
HULL
This
ultralight, high-strength hull is
extremely nimble and provides
maximum handling and control for
recreational and world-champion
riders alike. |
|
|
|
|
| |
| The Powerplant |
- The
GP®1300R is powered by a high-performance, fuel-injected
170 horsepower, three-cylinder, 1296cc Yamaha marine
engine.
- Electronic
Fuel Injection (EFI):
Computer-controlled, electronic fuel injection system
automatically adjusts fuel flow and ignition timing for
quick throttle response, maximum acceleration, and
improved fuel efficiency.
- Yamaha
Engine Management System (Y.E.M.S.):
An integrated, computerized management system that
controls and adjusts such functions as ignition timing,
fuel injection mapping, engine diagnostics and
off-throttle steering. The OTS function of YEMS
activates when the operator releases the throttle lever
and attempts to steer the watercraft. This assists the
operator in turning while the watercraft is
decelerating.
- Traction
Control: To manage the
awesome power of the GP1300R, Y.E.M.S. utilizes a
traction control feature that alters fuel/air mixtures.
This system enhances acceleration by reducing prop spin
and achieves top end performance by maintaining engine
RPM.
-
Ceramic-plated Cylinders:
Optimal heat transfer, durable, accurate and consistent
bore, lightweight.
- Yamaha
Loop-charged Combustion:
Fuel mixture actually loops as it enters the combustion
chamber, which helps distribute fuel/air mixture evenly
for better combustion, performance and fuel economy.
-
High-performance Tuned Exhaust Pipe and Manifold:
The equal flow manifold allows all cylinders to perform
equally at peak performance
- Variable
Oil Injection: Regulates
the fuel/oil mixture to deliver only what is needed at
different RPM levels; reduces smoke and oil consumption.
- Corrosion
Protection System:
Sacrificial zinc anodes protect the engine from harmful
galvanic corrosion. Stainless steel fasteners (nuts,
bolts, hardware) provide a long service life. Cylinders,
cases and heads are all treated with a durable oxide
coating to form a barrier between corrosion and
expensive engine parts.
|
| The Jet Pump Propulsion System
|
- The
GP1300R’s all new high pressure pump is
designed to maximize water flow
for high performance, while reducing sound. The GP1300R
intake cavity and pump configuration provides excellent
hook-up and smooth acceleration.
- Quick
Shift Trim System (Q.S.T.S.):
Mechanically operated, this system offers instant change
in the attitude of the watercraft while underway
allowing for tighter turns or quicker acceleration on
plane, as the rider prefers.
- Stainless
Steel Impeller Housing Liner:
For high durability, the liner maintains accurate
clearance tolerances between the impeller and the
housing.
- High Flow
Intake Duct and Grate: The
dynamic shape of these items directs water flow into the
pump for better thrust, performance and hook up.
- Cooling
Water Intake Filter:
Filters out harmful debris that could cause blockage of
important cooling water passages.
- Pumps are
Manufactured with YDC30: A
combination of zinc and copper alloys, developed by
Yamaha marine engineers, that offers excellent corrosion
protection.
|
| The Hull and Deck |
- The
lightweight GP1300R Sheet Molded Compound (SMC) hull and
deck is designed
specifically for two-person riding and competition. The
GP1300R hull is reinforced at critical load bearing
areas for durability and strength.
-
Championship Winning, Semi-V Hull:
This hull is based on the same design as that of the
world champion GP®1200R. Its unique variable draft and
concave keel design delivers exact handling in all water
conditions.

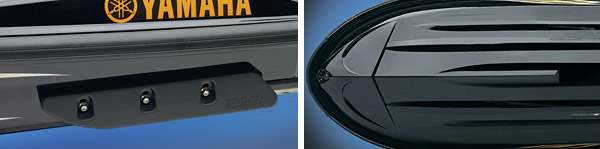

- Yamaha
Adjustable Sponsons (Y.A.S.):
This system allows the rider to adjust the turning
characteristics of the watercraft to either a positive
racing set-up or a more recreational feel.
- Integrated
Bow Spray Guard: Reduces
bow spray.
|
| Environmentally-minded
Innovations |
- By
employing proven technologies,
Yamaha delivers significant
reductions in emissions output and noise levels without
compromising performance and reliability.
- Yamaha
Sound Suppression System:
This system of integrated noise reduction components
targets the three common types of noise: 1.) intake
noise, 2.) exhaust noise and 3.) noise from vibration.
- Yamaha
Platinum Plus System: The
Yamaha Platinum Plus System is a high-tech catalyst that
is artfully integrated into the exhaust system. The
GP1300R comes with a California “two-star” rating for
very low emissions.
|
| Additional Features: |
-
Multi-function Electronic Information Center:
Provides the operator a quick read on speed, RPM, fuel
level, oil level, low fuel warning, low oil warning,
overheat warning and hour meter, battery voltage,
exhaust temperature warning indicator, check engine
light with self-diagnostic function and the industry's
only audible warning system.
- Skid
Resistant Footwells:
Provides added traction and comfort.
- Padded
Boarding Platform: Provides
a stable platform while re-boarding.
- Finger
Throttle Lever: Provides
added comfort while reducing hand fatigue.
- Yamaha's
Trademarked Visibility Spout®:
A 10 foot-plus spray of water created to improve the
watercraft’s conspicuity.
|
