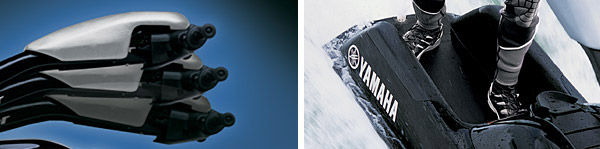

SPRING-ASSISTED HANDLEPOLE
A
corrosion-resistant coil spring
allows the handlepole to be lifted
effortlessly, allowing the rider to
have optimal control with less
fatigue. |
|
|
|
|
FOOT TRAY
A foot tray
with a slip-resistant surface
provides enthusiasts with the
leverage and traction to ride with
more confidence. |
|
|
|
|
| |
| The Powerplant |
- The
SuperJet™ is powered by a high-performance, 73
horsepower, two-cylinder, 701cc Yamaha marine engine.
Two 38mm Mikuni carburetors feed this world-class
powerplant, providing excellent throttle response
throughout the total RPM range.
- Yamaha
Loop-charged Combustion:
Fuel mixture actually loops as it enters the combustion
chamber, which helps distribute fuel/air mixture evenly
for better combustion, performance and fuel economy.
- Corrosion
Protection System:
Sacrificial zinc anodes protect the engine from harmful
galvanic corrosion. Stainless steel fasteners (nuts,
bolts, hardware) provide a long service life. Cylinders,
cases and heads are all treated with a durable oxide
coating to form a barrier between corrosion and
expensive engine parts.
-
Electronically Controlled, Variable Ignition Timing:
For exact ignition advance control at all throttle
positions and RPMs.
|
| The Jet Pump Propulsion System
|
- The
SuperJet 144mm Hyper-Flow jet pump propulsion system
with three-blade aluminum
progressive-pitch impeller is designed to maximize water
flow for high performance. The SuperJet pump
configuration provides excellent hook-up and smooth
acceleration.
- Stainless
Steel Impeller Housing Liner:
For high durability, the liner maintains accurate
clearance tolerances between the impeller and the
housing.
- High Flow
Intake Duct and Grate: The
dynamic shape of these items directs water flow into the
pump for better thrust, performance and hook-up.
- Pumps are
Manufactured with YDC30: A
combination of zinc and copper alloys, developed by
Yamaha marine engineers, that offers excellent corrosion
protection.
|
| The Hull and Deck |
- The
SuperJet Fiberglass Reinforced Plastic (FRP) deck and
Sheet Molded Compound (SMC) hull
is designed specifically for solo riding. The SuperJet
hull is reinforced at critical load bearing areas for
durability and strength.
-
High-performance, Concave Hull:
The lightweight, concave hull design of the SuperJet
provides superior grip and agility on the tight turns
and allows a true feeling of adhesion to the water's
surface.
-
Environmentally-minded Innovations:
By employing proven technologies, Yamaha delivers
significant reductions in noise levels without
compromising performance and reliability. These
technologies include:
- Yamaha
Sound Suppression System:
This system of integrated noise reduction components
targets the three common types of noise: 1.) intake
noise, 2.) exhaust noise and 3.) noise from vibration.
|
| Additional Features: |
-
Oval-shaped Handlepole:
This handlepole design is 40 percent lighter and 50
percent stronger than conventional handlepoles and its
high pivot position gives the rider more leverage for
easier transitions and turning.
- Corrosion
Resistant Coil Spring:
Makes the handlepole feel lighter for optimal control
and reduces rider fatigue.
- Thickly
Padded Ride Tray: Padding
is provided on the deck, gunwales and handlepole for a
more comfortable ride.
- Kick Step:
Provides riders with a slip resistant surface and added
balance.
- Automatic
Bilge System: Removes water
from the engine compartment.
- Transom
Exhaust System: Adds
performance while reducing noise levels.
- Adjustable
Steering System: Allows the
rider to adjust the steering nozzle angle and turning
performance.
- Yamaha's
Trademarked Visibility Spout®:
A waterspout from the rear of the craft that improves
the craft’s conspicuity.
|
