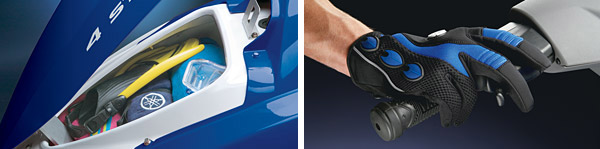

STORAGE
Over 18
gallons of storage ensure you always
have enough room to pack all the
essentials for a day on the water. |
|
|
|
|
FINGER
THROTTLE
Yamaha's
finger throttle lever is
ergonomically designed to add to the
driver's comfort by reducing hand
fatigue. |
|
|
|
|
| |
| The Powerplant |
- The VX™
Sport is powered by a Yamaha MR-1™ four-stroke engine.
This is a compact, ultra-lightweight, 110 horsepower,
four-cylinder, 1052cc, DOHC, 20-valve, liquid-cooled
engine for class-leading performance.
- Electronic
Fuel Injection (EFI):
Delivers a smooth, high power output with low fuel
consumption and low exhaust emissions.
- Specially
Designed, One-piece Cylinder and Crankcase Assembly:
Provides tremendous engine rigidity that's lighter and
stiffer than two-piece designs.
- Slant
Detection Switch:
Electronic switch stops engine and oil pumps immediately
if watercraft becomes overturned, protecting motor from
water ingestion.
- Dry Sump
Lubrication: Uses two
engine oil pumps to deliver lubricated oil to each
moving part with water-jacketed sump and oil backflow
protection.
- Yamaha
Engine Management System (Y.E.M.S.):
An integrated, computerized management system that
controls and adjusts such functions as ignition timing,
fuel injection mapping, engine diagnostics and OTS. The
OTS function of Y.E.M.S. activates when the operator
releases the throttle lever and attempts to steer the
watercraft. This assists the operator in turning while
the watercraft is decelerating.
-
Thermostatic and Pressure Controlled Cooling System:
Water flow through the engine is controlled by a
thermostat and pressure system and is maintained by a
pressure control valve.
- Corrosion
Protection System:
Sacrificial zinc anodes protect the engine from harmful
galvanic corrosion. Stainless steel fasteners (nuts,
bolts, hardware) provide a long service life.
-
Electronically Controlled, Variable Ignition Timing:
For exact ignition advance control at all throttle
positions and RPMs.
|
| The Jet Pump Propulsion System
|
- The VX
pump design is one of the most efficient pump
configurations ever,
increasing stream velocity and thrust while decreasing
cavitation and prop spin.
- Stainless
Steel Impeller Housing Liner:
For high durability, the liner maintains accurate
clearance tolerances between the impeller and the
housing.
- High Flow
Intake Duct and Grate: The
dynamic shape of these items directs water flow into the
pump for better thrust, performance and hook up.
- Cooling
Water Intake Filter:
Filters out harmful debris that could cause blockage of
important cooling water passages.
- Pumps are
Manufactured with YDC30: A
combination of zinc and copper alloys, developed by
Yamaha marine engineers, that offers excellent corrosion
protection.
|
| The Ultra-Lightweight, High
Strength Hull and Deck |
- The VX
Sport hull is designed to be light and strong.
-
Progressive, V-Hull with Integrated Bow Spray Guard:
Provides excellent maneuverability, handling and
comfort.
-
Performance Sponson Design:
Provides added straight-line comfort and an improved two
and three-up riding experience.
|
| Additional Features: |
-
Multi-function Electronic Information Center:
Provides the operator a quick read on speed, RPM, fuel
level, low fuel warning, low oil pressure warning,
overheat warning, hour meter, check engine light with
self diagnostic function.
- 19 Gallons
of Total Storage: Includes
a large bow storage locker and glovebox.
-
Comfortable One-piece Seat:
Ergonomically-designed and contoured for added support.
The extra-long seat is easily removed for quick access
to the engine compartment.
- Extra
Large Boarding Platform:
Provides a stable platform for re-boarding.
- Finger
Throttle Lever: Provides
added comfort while reducing hand fatigue.
- Yamaha's
Trademarked Visibility Spout®:
A waterspout from the rear of the craft that improves
the watercraft's conspicuity.
|
